WPNRWO15606G | WALL MOUNT 19" OUTDOOR INDUSTRIAL CABINET IP55 RWO SERIES 15 | WP Rack | distributori informatica

Clicca per ingrandire

WALL MOUNT 19" OUTDOOR INDUSTRIAL CABINET IP55 RWO SERIES 15
Product code:	WPNRWO15606G
Vendor code:	WPN-RWO-15606-G
Brand:	WP Rack
See printable product details

Article list

The series of industrial rack cabinets is the optimal solution for wall installations in harsh environments, especially outdoors, because they meet the IP55 protection requirements.
The solid, fully welded structure made of steel sheet up to 2mm thick, protects the network equipment from atmospheric conditions (rain, dust, hail, snow, splashes of water).
The ventilation kit with 2 fans already installed on the roof of the rack and with special filters guarantees the supply of fresh air (protection against the penetration of water and dust according to the IP55 standard). Cable entry from the bottom, insulated PG cable glands already included. Single-opening door, secured with 2 waterproof locks (6U, 1 lock), with ventilation slots and dust filter.

- Installation: wall mounted
- Safety class rating IP 55
- Steel front door with waterproof locks with ventilation slots and dust filter
- Door opening angle 110°
- Cable entries in the base: 2x M32, 1x M63, 2x PVC blind plug (with a diameter of 28 mm)
- Ventilation kit included with 2 fans and dust filters (Schuko plug)
- Complete with 4 numbered rails adjustable in depth
- Front rails equipped with lateral cable guide rings
- Light grey colour, RAL 7035
- Electrostatic powder coating based on polyester, formulated with TGIC
- Earthing kit included
- Mounting kit included (4 expansion screws M8x100)
- Load capacity up to 100 Kg
- 24 sets of screws included (screws + cage nuts)
- Weight 26 Kg
- Standard: Compliant with IEC297-2, DIN41491, BSI5954, DIN41494, EXT ANSI/EIARS-310-D GB/T3047.2-92BZ;

Compatible with international 19” standards, metric standards

WALL MOUNT RACK 19" RWB SERIES 12U BLACK RAL 9005
WPNRWB12606B

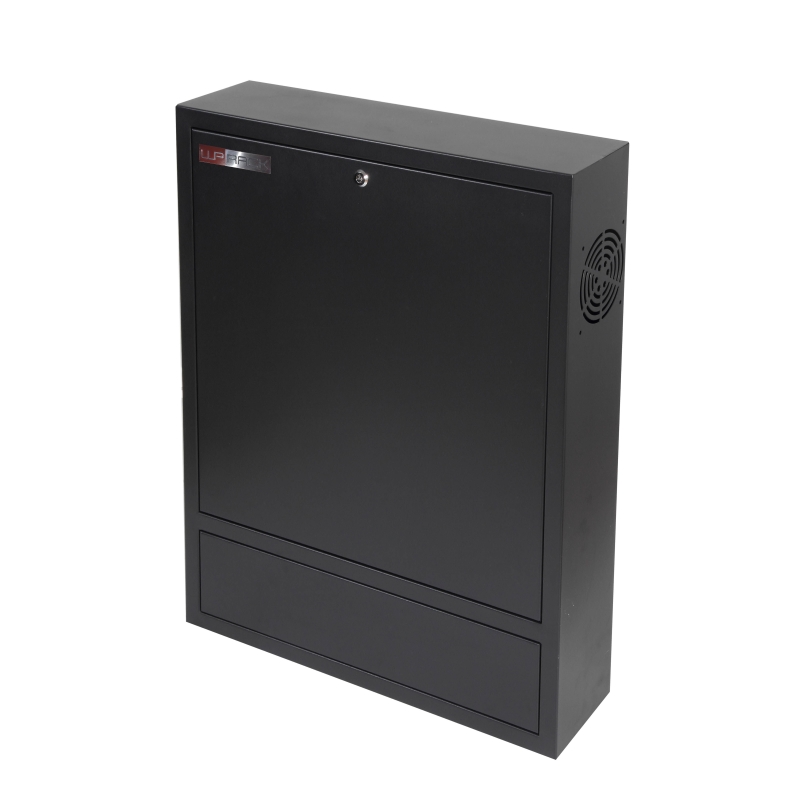

VERTICAL SECURITY RACK 19" RWN SERIES BLACK
WPNRWN02601B

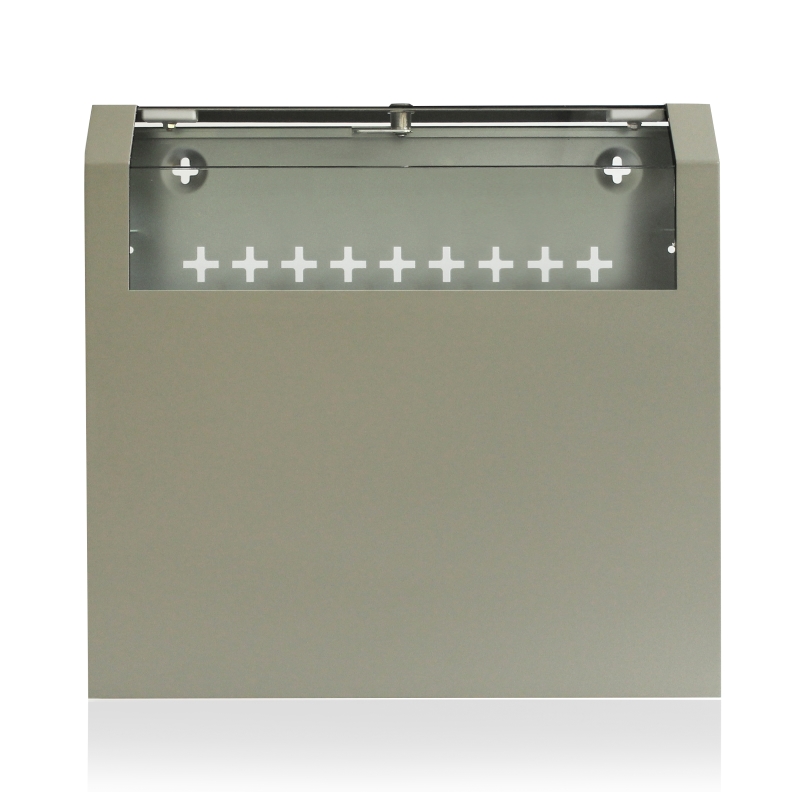

VERTICAL WALL MOUNT RACK 19" RWV SERIES 5U GREY RAL 7035
