DS-55358 | HDMI Video Wall Controller, 4 Displays 4K/30Hz, HDMI, USB-C | Digitus | distributori informatica

Clicca per ingrandire

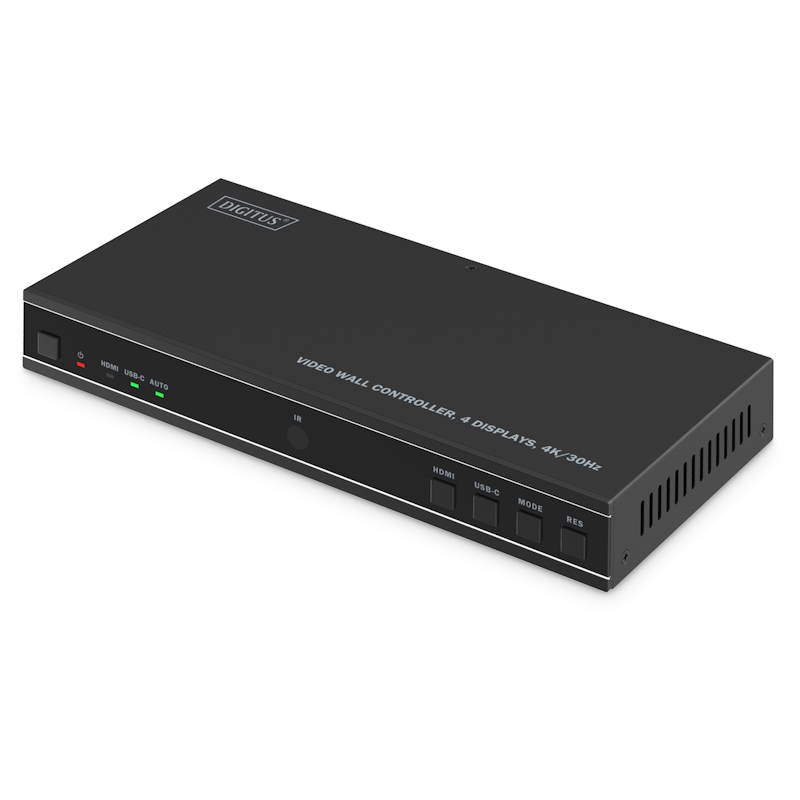

HDMI Video Wall Controller, 4 Displays 4K/30Hz, HDMI, USB-C
Product code:	DS-55358
Vendor code:	DS-55358
Brand:	Digitus
See printable product details

Article list
Specifiche Tecniche
Allegati

Maximum resolution input signal: 4K/60Hz

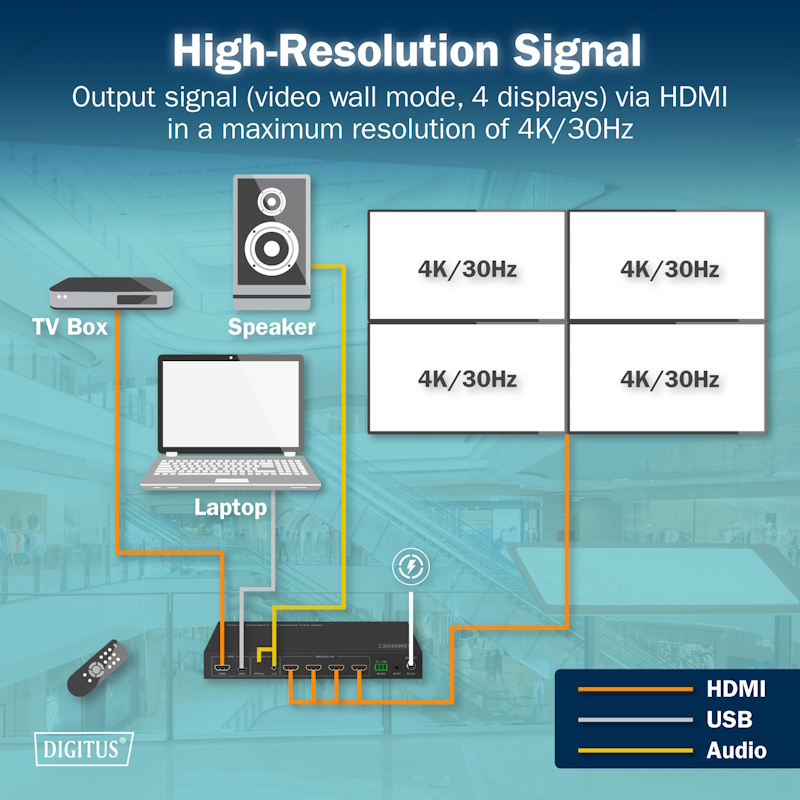

Maximum resolution output signal (video wall mode): 4K/30Hz
HDMI 2.0
HDCP 2.2
DP 1.2a
Video bandwidth: 18 Gbps
Max. HDMI cable length (input/output): 4K/60Hz - 8 m, 4K/30Hz - 10 m , 1080p/60Hz - 15 m

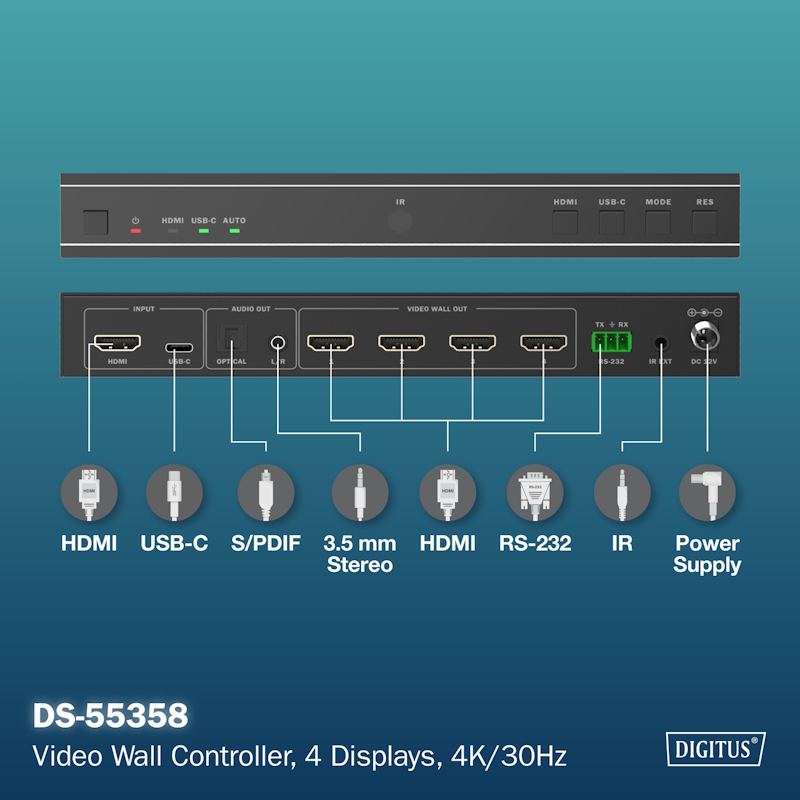

Rear connections:
1x HDMI input (HDMI 2.0, 4K/60Hz) - Signal source connection
1x USB-C input (DP 1.2a, 4K/60Hz) - Signal source connection
4x HDMI output (HDMI 2.0, 4K/30Hz) - Display connection
1x 3.5 mm stereo output, analog - Separate audio output via loudspeaker
1x S/PDIF output, digital - Separate audio output via speakers
1x IR extension - extension cable for the Video Wall Controller remote control (if front panel IR receiver is covered during installation)
1x RS232 Pass Through - control of connected devices
1x power supply connection (DC 12V/1A) - external power supply connection
Buttons/LED display front panel:
1x on/off switch
4x status LED
1x IR receiver - Vide Wall Controller control via supplied remote control
2x signal source switch (HDMI or USB-C)

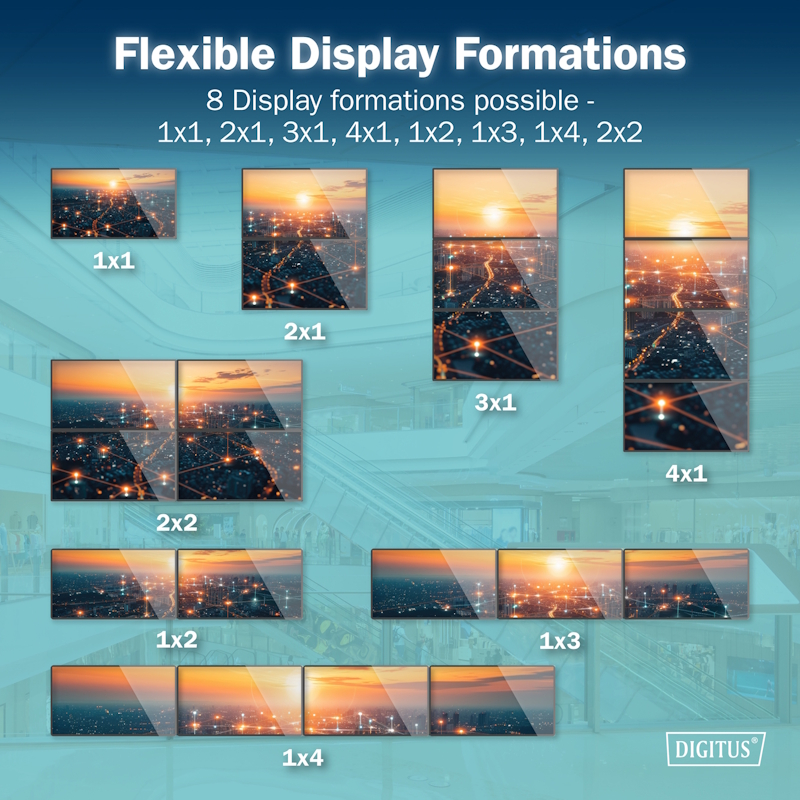

1x video wall mode switch - switch between the 8 different screen formations
1x output resolution switch - Conveniently change the resolution of the output displays
Operating temperature: 0° - 40° C
Power consumption: approx. 5.5 W
Dimensions: L 10.0 x W 22.0 x H 3.0 cm
Weight: 590 g
Housing: Metal
Color: Black

User Manual

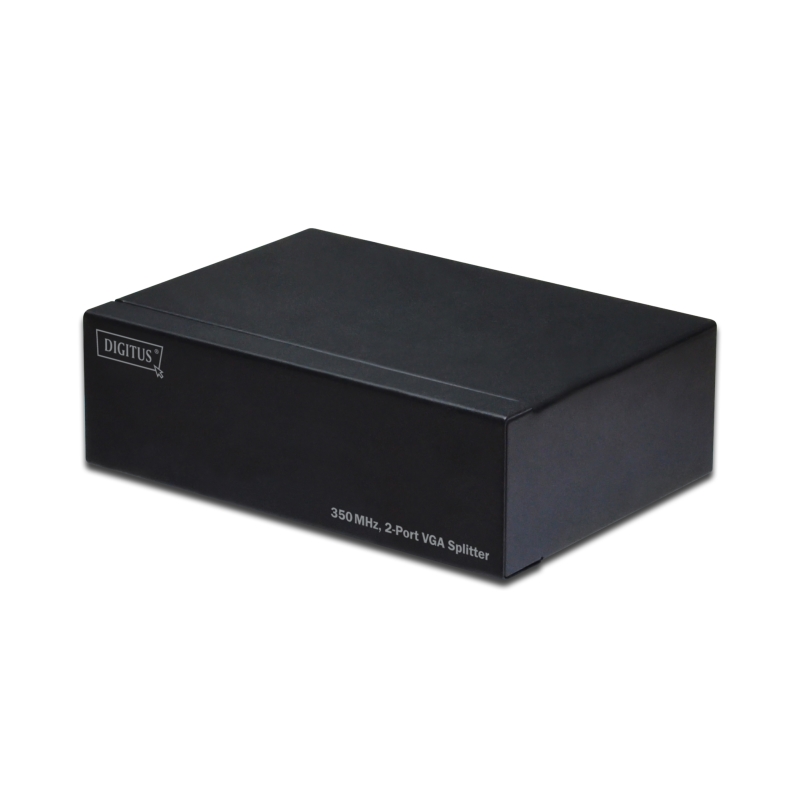

VIDEO SPLITTER 1 PC, 2 MONITORS
